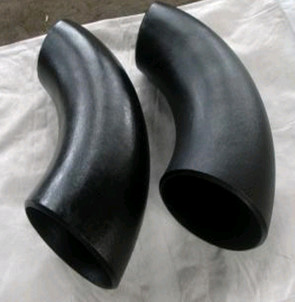

A234 WP5 Alloy Steel Pipe Fittings 90 Deg LR Elbow Seamless Carbon Steel Elbow
Product Description:
Material: Carbon Steel: ASTM/ASME A234 WPB/WPC; A420 WPL6
Stainless Steel: A403 WP304/304L; WP316/316L/316H;WP347H,etc.
Size: 1/2"~24"; 26"~96"
Wall Thickness: SCH5S~XXS
Standard: ASTM/JIS/DIN/BS/GB
Advantages And Characteristics
Our company has passed ISO9001 international quality management system certification, ISO14001 environmental management system certification, HSA18001 occupational health and safety management system certification, pressure pipeline special equipment manufacturing license, Shandong Province measurement assurance capacity certificate, China Datang Group network member factory certificate, China chemical equipment designated production enterprise certificate, China power accessories network member factory certification Certificate and Sinopec material supply network member certification.
Our company has advanced production equipment, complete testing equipment and strong technical force. The leading products are various alloy steel pipes and steel pipe fittings series products(elbow, bend, tee, cross, reducer, head, flange, support and hanger, and socket fittings), and equips with 200 sets of key equipment such as pusher, press, large heat treatment furnace, beveling machine, sawing machine, tee extruder, splint hammer, large sandblasting machine and various testing instruments. The company keeps over 13000 tons of all kinds of alloy steel pipes all year round, has the materials of SA106B, 20G, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335 P5/P9/P11/P12 /P22 /P91/P92,WB36 and kinds of austenitic stainless steel pipes. The company has become a "Special Dealer" for other major steel pipe factories, our products are widely used in petroleum, chemical industry, electric power, metallurgy, city gas, heat pipe network, shipbuilding and other pipework industries.
| Material | carbon steel, stainless steel, alloy steel |
| Technique | welded, bending,forged,exturd |
| Connection | welding |
| Head code | bevel the end |
| Size | 1/2'' to 72''/DN15-DN3600 |
| Angles | elbows,bend,tee,cross,reducers,cap,pipe, flanges,socket steel fittings,nipple |
| WT | Sch5-SchXXS ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
| Standard | ANSI,ASME,API5L,DIN,JIS,BS,GB
we can also produce according to drawing |
| Specification standards | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617,EN10253 |
| Min Order Quantity | According to customer's requirement |
| Types | 45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
| Radius Of Curvature | 1D-10D Elbow, ANSI,ASME,API5L,DIN,JIS,BS,GB |
| Surface treatment | black paint, varnish, rust-proof oil, and hot-dipped galvanized |
| Range Of Application | Chemical industry, petroleum industry, construction industry, domestic installation and other |
| Certificates | API CCS ISO BV NB ASME |
0 degrees can be manufactured in different ways, the main ones are the “mandrel process” and the “cold forming” (other methods are the elliptical forming and the double-seam welding method).
| | Pipe elbow |
| | 1/2"-36" seamless, 26"-110" welded |
| | ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc. |
| | STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160,XXS and etc. |
| | 30° 45° 60° 90° 180°,etc |
| | LR/long radius/R=1.5D,SR/Shrot radius/R=1D, Various radius:2.5D,3D,5D,10D, 20D etc. |
| | Bevel end/BE/buttweld |
| | nature color, varnished, black painting, anti-rust oil etc. |
| | Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH,P295GH,P355GH etc. |
| Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. |
| Cr-Mo alloy steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc. |
| | Petrochemical industry;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship building;water treatment,etc. |
| | ready stock,faster delivery time;available in all sizes,austomized;high quality |
Mandrel Process
1)ANSI B16.9 SCH 20 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.
2)ANSI B16.9 STD Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.
3)ANSI B16.9 SCH 40 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.
4)ANSI B16.9 SCH 80 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.
5)ANSI B16.9 SCH 160 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.
Size Range
1).Seamless Elbows: 1/2" ~ 24" (DN15-DN600)
2).Seam Welded Elbows: 1/2"~72" (DN15~DN1800)
Surface Treatment
Surface-1: Transparent Anti-rust Oil.
Surface-2: Sandblasting
Surface-3: Black Color Painting
Surface-4: Hot Dipped Galvanzied
Manufacter supplis strightly , of good quality and big quantity
specializes in producing duplex stainless steel and stainless steel pipe fitting ( elbow, tee, reducer, stub end, cap), flange, forged fitting, sanitary fitting etc.
Welsure products are according to ANSI/ASME B16.9, ANSI/ASME B16.5/B16.47, ANSI/ASME B16.11, GB/T12459, GB/T13401, BS, DIN,JIS etc.
We will offer quality products at best price with good services to our customers around the world. We are looking forward to cooperating with you.
Used to the pipes connecting ,
Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc
